Cavo ethernet CAT6 UTP PVC 8 fili 24AWG, Rame, 305metri
search
  • Cavo ethernet CAT6 UTP PVC 8 fili 24AWG, Rame, 305metri

Cavo ethernet CAT6 UTP PVC 8 fili 24AWG, Rame, 305metri

Codice Articolo: CAB-6-BE

217.65 € Iva Inclusa
Sizes: 1
Box: 2
Color: Orange
Certificate: CE Rohs
Comp. brand: Uniarch
Quantità



Pagamenti sicuri e criptati

  Spedizioni nello stesso giorno lavorativo

se ordini vengono effettuati entro le 11:00 AM



Resi 14 giorni

Data Sheet Matassa 305m

Guaina LSZH

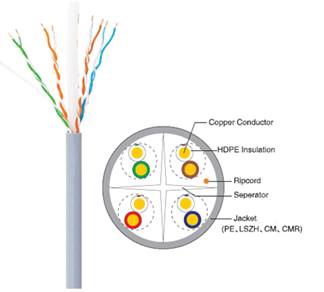

Content of Data Sheet
Product model CAB-6-BE
Product specification HSYV-6 4×2×0.52
Test Standard ISO/IEC11801、TIA-568-C.2、 YD/T1019
Conductor Material Solid-Bare Copper
AWG 24
Nom.OD(mm) 0.52±0.03 mm
DC resistance 95 /km
Insulation Material HDPE
Thickness 0.2±0.02 mm
Diameter 0.93±0.05 mm
Color Blue/White- Blue Green/White-Green
Orange/White-Orange Brown/White-Brown
Pitch Offset pitch 20 mm
Cable pitch 120 mm
Sheath Material PVC(complies RoHS/REACH)
External OD 5.8±0.3 mm
Color Orange
Tensile strength >13.5 MPa
Thickness 0.6±0.05 mm
Surface Printing Letter height 3.0±0.3 mm
Color Black
Print error
& Space		 1±0.005 m
Case number Yes
Packing Packing Carton
Once packing dimension 420mm*205mm*420mm
Twice packing dimension 450mm*440mm*445mm
Twice packing quantity 2 cases
Packing length 305±1m
Rip-cord Yes Crossing backbone Yes
Ambient temperature -20℃～60℃
Uniarch
CAB-6-BE
35 Articoli
